EMC Scanner

EMC Scanner is widely used in EMC test laboratories necessarily in need of EMC countermeasures or speedy noise measures at the development phase of PCB circuit and electric components.

Developed and manufactured by ERETEC in Korea, notable corporations and test laboratories have used in the fields of mobile, IT, semiconductor, automobile and electronic component manufacturing. Easy-to-use user interface and function upgrade are provided adaptable for customers’ necessities.

It supports all kinds of signal analyzers and furthermore IC Chip Scan Test utilizing PCB’s ESD Visualization test and Near Field Micro probes.

RCE Series

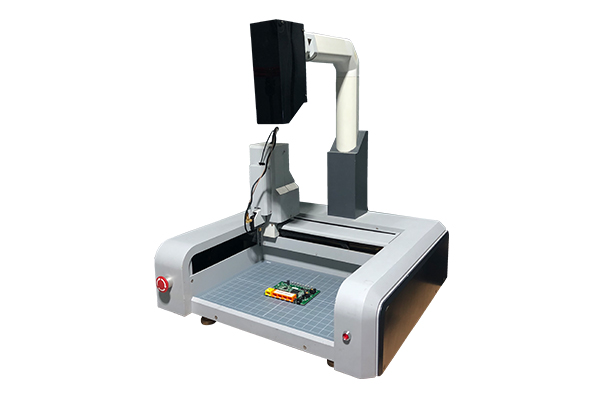

Model: RCE-40/25
  • Axis
    X, Y, Z Simultaneous 3-Axes Control
  • Scan Table Dimension
    RCE-25 : 700mm(X) × 700mm(Y) × 820mm(Z)
    RCE-40 : 790mm(X) × 800mm(Y) × 1000mm(Z)
  • Scan Area
    RCE-25 : 250mm(X) × 175mm(Y) × 80mm(Z)
    RCE-40 : 400mm(X) × 280mm(Y) × 100mm(Z)
    RCE-40H : 400mm(X) × 280mm(Y) × 200mm(Z)
  • Min. Scan step
    0.1mm(Mechanical resolution : 0.01mm)
  • Scan Area Selection
    Single reference(Top position of EUT)
    Rectangular Area / Polygon Area / Exclusive Area
  • Scan Orientation
    Default : 0℃ ~ 360℃ (Manual change)
  • Scan Method
    Constant [absolute] level scanning
    Constant distance auto scanning from EUT surface
  • Frequency Range
    30MHz ~ 3GHz
  • Probe
    E-field probe Electrode surface : 4 × 4mm
    10mm H-field probe
    2mm H-field probe


Monitoring System

Vision & Data Monitoring System monitors the status of DUT by transmitting real time images taken by shielded cameras inside EMC chamber and saving the data in the control PC and various options are available to boost the efficiency of monitoring.
EMC Shielded Camera System meets CISPR25 radiation limit and ISO 11452 immunity test(field strength 200V/m) and uses a special EMC compliant power supply.

Multiple cameras are managed under single system adopting a multi-channel controller.
Bespoke solutions are available for various and complex testing environments as well as standard systems.

DATA Monitoring System

Data change traceability and image acquisition in connection with automotive immunity software

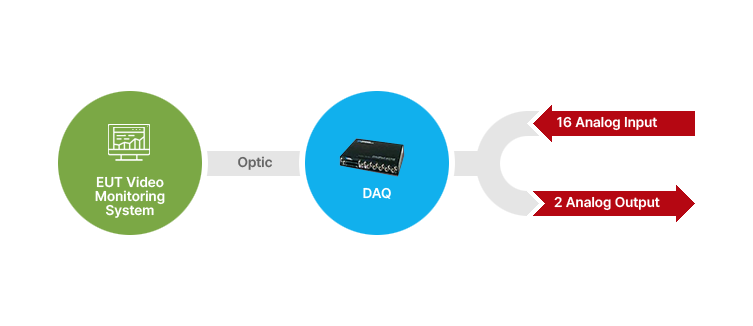

Data Analysis (Min.16CH, Max. 48CH)
  • Real-time graph of each channels according frequency change
  • Save Graph (BITMAP)
  • Sampling rate : 1 MS/s (All Channel)
  • Resolution 16bit
  • AlI Range : +/- 10V (Atten 1:10 applied, Max. +/- 100V)

Vision Monitoring System

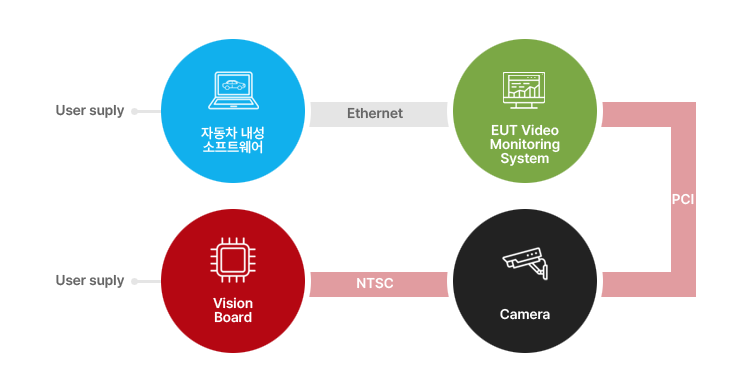

Data change traceability and image acquisition in connection with automotive immunity software

Automotive image saving and analysis using vision
  • Detection of specific and entire image changes
  • Detection of image change cycle
  • Various type of image saving (Still image, high-compression video saving through MPEG4)
  • Various data analysis against frequency changes in connection with automotive immunity software
  • NTSC
  • 1920 x 1080 Full HD
  • 30Frames/s, 60Fields/s
