EUT’s image change tracking and data acquisition interfaced with vehicle immunity software .

Data change tracking and image acquisition of EUT by interfacing with immunity test software for vehicles.

The ICS 105 IC scanner allows for measurements of high-frequency near fields above ICs. Depending on the used ICR near-field microprobe magnetic or electric fields can be measured with a measuring resolution of 50 to 100 µm. The probe can also be automatically rotated to determine the magnetic field’s direction.

Optionally the ICS 105 scanner can be used for measurements above small assemblies in combination with UH-DUT universal holder and SH 01 probe holder.

The IC scanner can be set up for ESD or EFT immunity tests on ICs in a few simple steps.

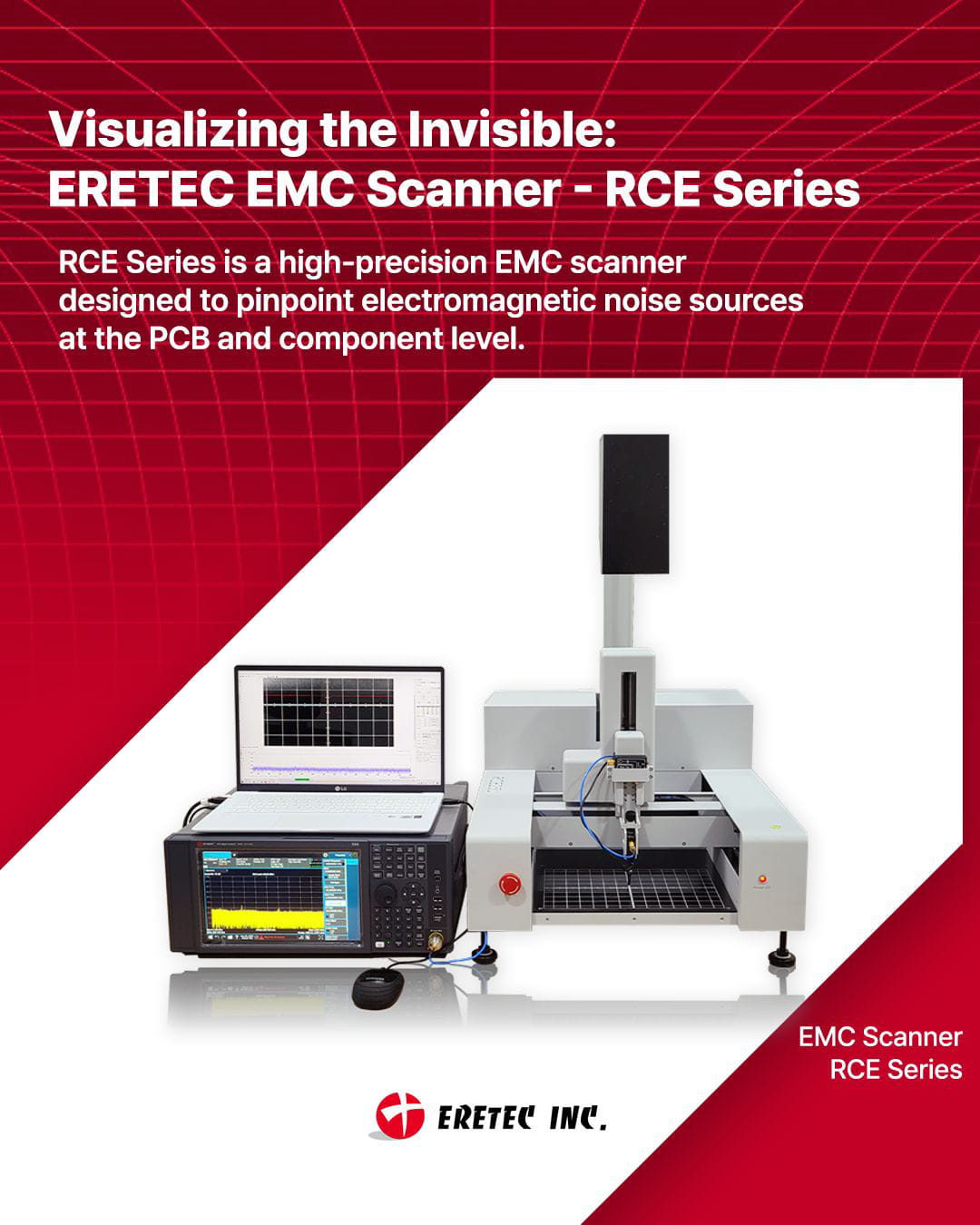

The RCE Series is a high-performance Near-Field Scanning System capable of 3-axis simultaneous control (X, Y, Z) for EMC/EMI debugging. This system supports a wide frequency band from 30 MHz to 40 GHz and provides ultra-precise measurement of E/H field noise on the surface of PCBs and EUTs (Equipment Under Test) with a minimum step size of 0.1 mm.
Notably, it supports innovative scanning methods such as polygonal area scanning and automatic distance-keeping surface scanning of the EUT. This contributes decisively to reducing product development time by quickly and accurately identifying the noise sources of complex products.

Langer EMV-Technik GmbH also manufactures special shapes of near-field probes according to customer requirements.

The MFA family consists of four active magnetic field probes. The MFA 01 includes three magnetic field probes. The MFA 02 set consists of two magnetic field probes for low frequency measurements.

The HR family consists of an H-field probe and an E-field probe for the measurement of high-frequency RF fields up to 40 GHz during development.

The SX family consists of three H-field probes and one E-field probe. The SX1 set (two H-field probes and one E-field probe) and the SX-R 20-1 set are available.
