EMC/안테나 챔버용 전자파 흡수체(EMC Absorber) 맞춤형 솔루션

EMC 챔버를 위한 흡수체

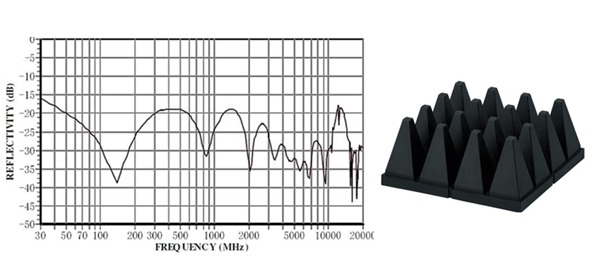

페라이트 흡수체
(Ferrite Absorber)

Dimension: 600mm × 600mm × 80mm / 200mm
Weight: 2.6 kg
Material: Ferrite Powder
Power Handling: 1 kW/m² or 600 V/m
Fire Retardancy: NRL 8093, DIN 4102 B2

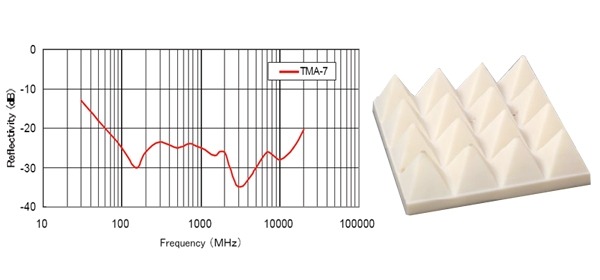

플라스틱 페라이트 흡수체
(Ferrite Absorber Plastic)

Dimension: 200mm × 200mm × 70mm
Weight: 1.5 kg
Material: Ferrite & ABS
Fire Retardancy: IEC and ISO

폴리프로필렌 흡수체
(Polypropylene Absorber)

Base Size: 600mm × 600mm
Weight: 4.1 kg
Material: Polypropylene
Power Handling: 1 kW/m² or 600 V/m
Fire Retardancy: NRL 8093 T, DIN 4102 B2

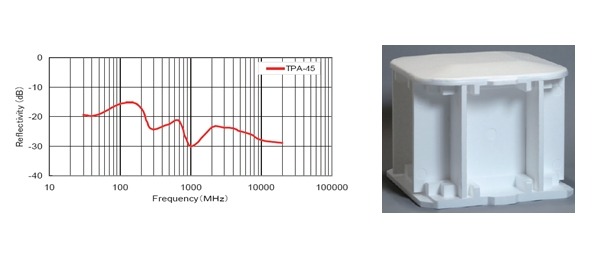

폴리스티렌 폼 흡수체
(Polystyrene Foam Absorber)

Base Size: 600mm × 600mm
Weight: 3.0 kg
Material: Polystyrene foam
Fire Retardancy: IEC and ISO

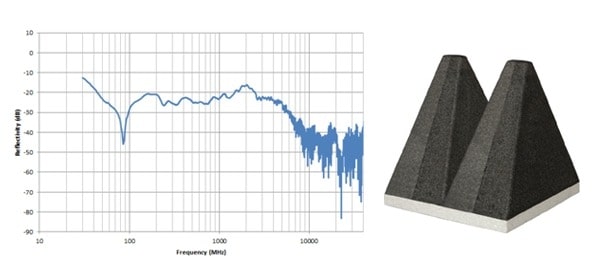

폴리스티렌 폼 흡수체
(Polystyrene Foam Absorber)

Base Size: 600mm × 600mm
Weight: 2.7 kg / 10.7 kg
Material: Polystyrene foam
Fire Retardancy: EN 11952-2, UL 94-HBF, DIN 4102-B2, EN 13501-1 Class E

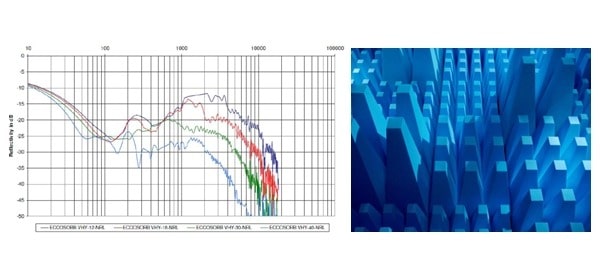

폴리우레탄 흡수체
(Polyurethane Absorber)

Base Size: 600mm × 600mm
Weight: 3 kg ~ 9.3 kg
Material: Polyurethane
Power Handling: 1.5 kW/m² or 600 V/m
Fire Retardancy: DIN 4102 B2, ISO 11925-2, NRL8093 test 1, 2 and 3

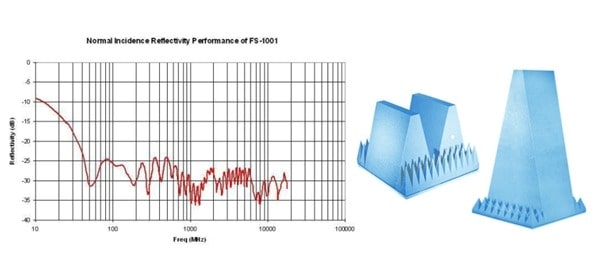

폴리우레탄 흡수체
(Polyurethane Absorber)

Base Size: 600mm × 600mm
Weight: 19 kg, 25 kg
Material: Polyurethane
Power Handling: 200 V/m
Fire Retardancy: DIN 4102 B2, MIT MS-8-21, NRL8093 test 1, 2 and 3

안테나 챔버를 위한 흡수체

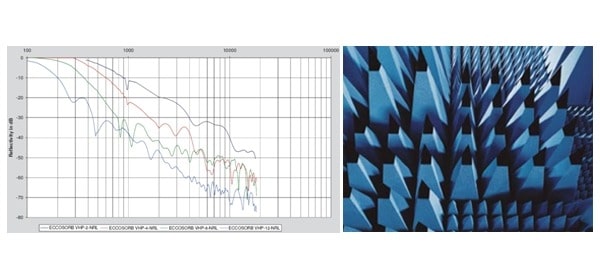

폴리우레탄 흡수체
(Polyurethane Absorber)

Base Size: 610mm × 610mm
Weight: 1.2 kg ~ 9 kg
Material: Polyurethane
Power Handling: 200 V/m
Fire Retardancy: DIN 4102 B2, ISO 11925-2, NRL8093 test 1, 2 and 3

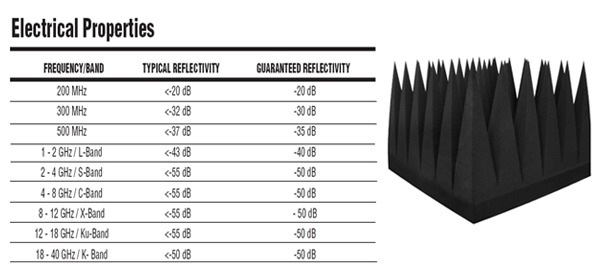

폴리우레탄 흡수체
(Polyurethane Absorber)

Base Size: 610mm × 610mm
Weight: 4.8 kg
Material: Non-Hygroscopic Substrate
Power Handling: 850 V/m
Fire Retardancy: DIN 4102 B2, MIT MS-8-21, NRL8093 test 1, 2 and 3

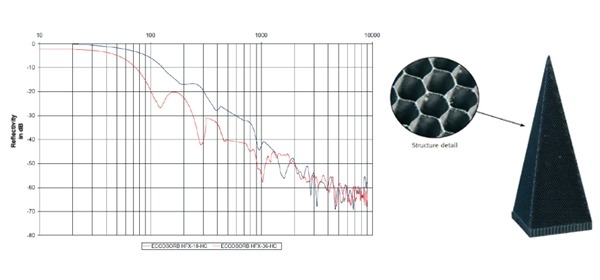

고출력 흡수체
(High Power Absorber)

Base Size: 610mm × 610mm
Weight: 4.8 kg, 9 kg
Material: Lossy Honeycomb
Power Handling: 15 kW/㎡
Fire Retardancy: Retardant Material
