Antennas
TESEQ은 최대 18GHz 애플리케이션을 위한 혼 안테나와 의료 표준에서 요구하는 루프 안테나를 포함하여 광범위한 고성능 EMC 안테나 제품을 보유하고 있습니다.
CBL 6141B DATASHEET

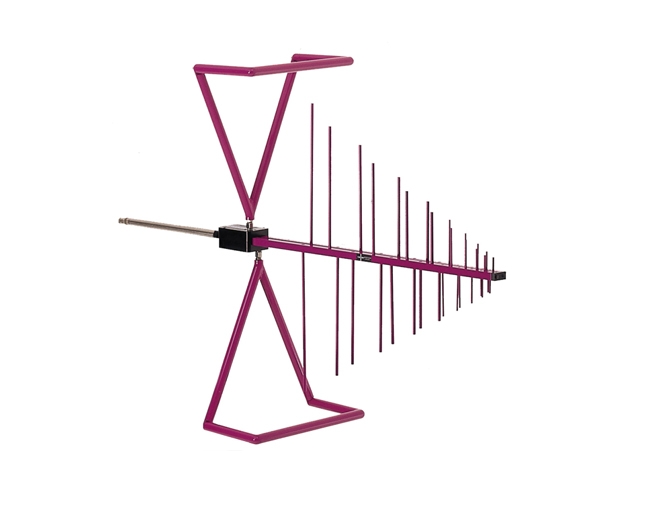

CBL 6141B는 컴팩트한 X-Wing® BiLog® 안테나로 소형 무반사 챔버에서 RF EMC 방출 및 내성 시험에 적합하게 설계된 제품입니다. 독자적인 BiLog® 기술과 새롭게 설계된 저주파 접이식 요소(X-Wing®)의 결합을 통해, 80 MHz 대역에서의 전력을 효율적으로 전방 투사하면서도 고주파 특성에는 영향을 최소화합니다.
- Broadband immunity and emission antenna
- Less than 100 W required above 80 MHz
- Can also be used for emission testing
- Low chamber coupling
- Up to 30% saving in test time
- Excellent symmetry
